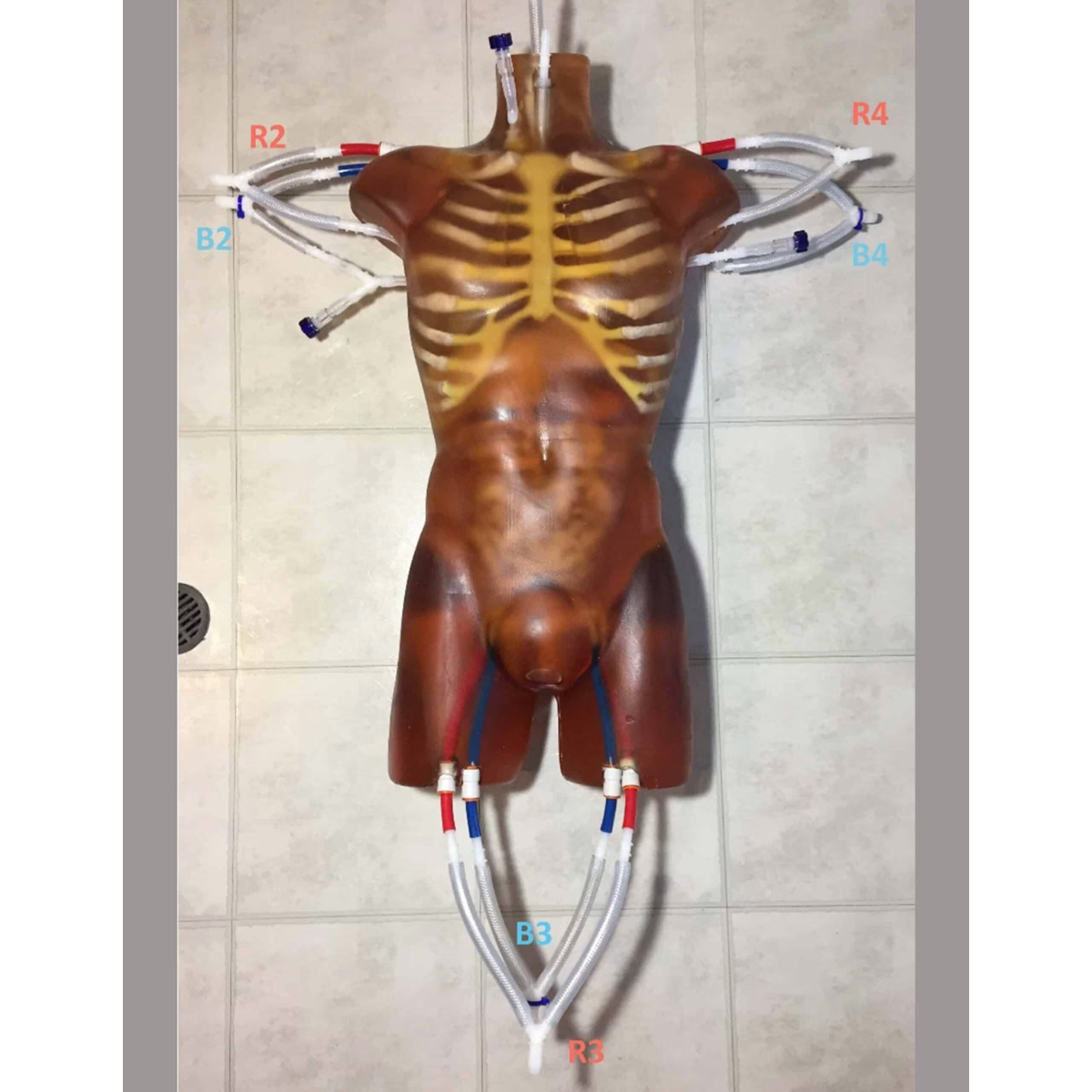

Adult Torso (Dynamic) Phantom for X-Ray, CT & MRI
The Adult Human Torso (Dynamic) Phantom is a lifelike, anatomically accurate simulator from neck to pelvis, designed for MRI and X-Ray/CT applications. This advanced phantom features a realistic skeleton with a three-layered structure and inner porosity, and all major organs are included. It is ideal for applications such as angiography and imaging research.

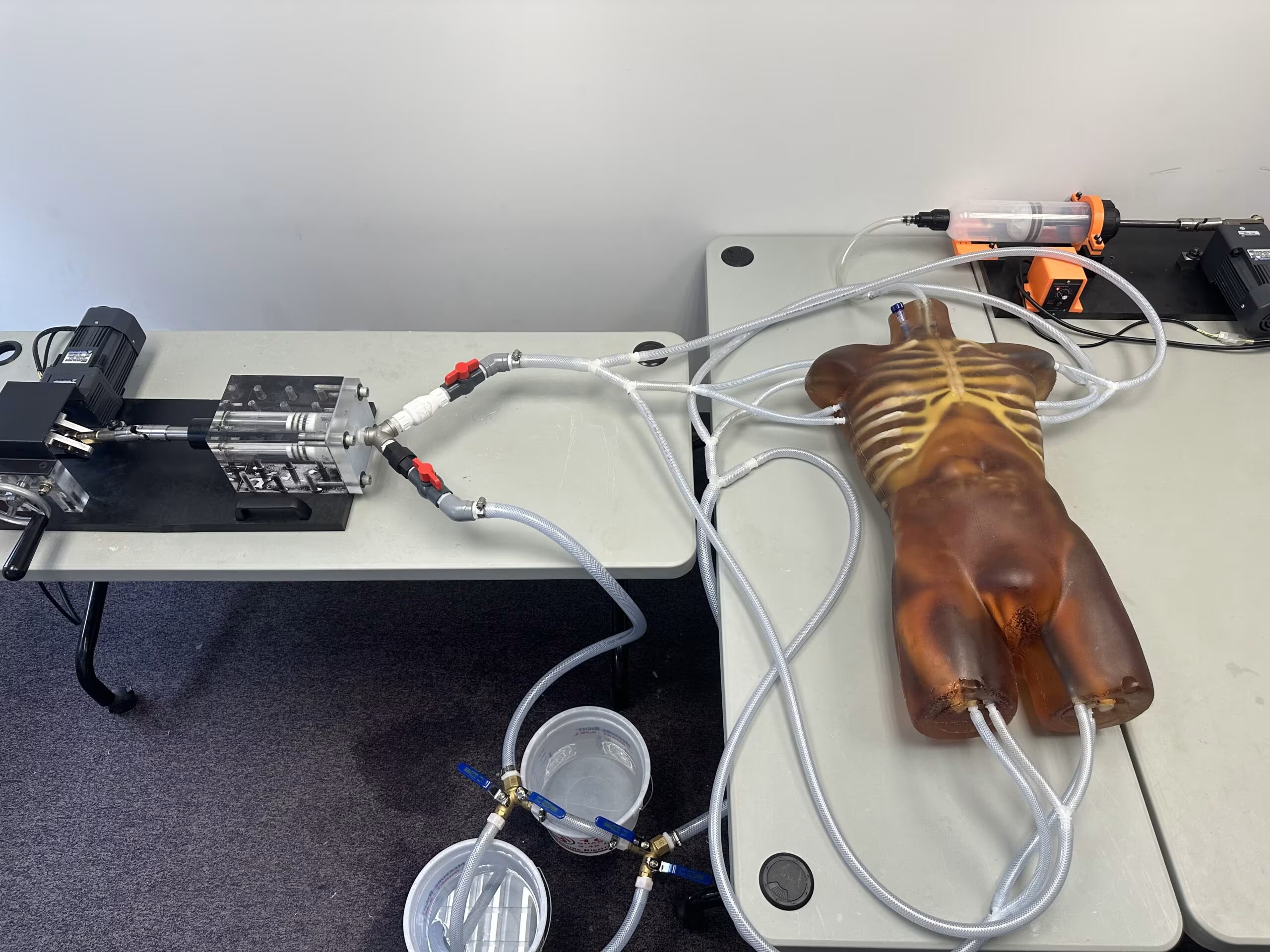

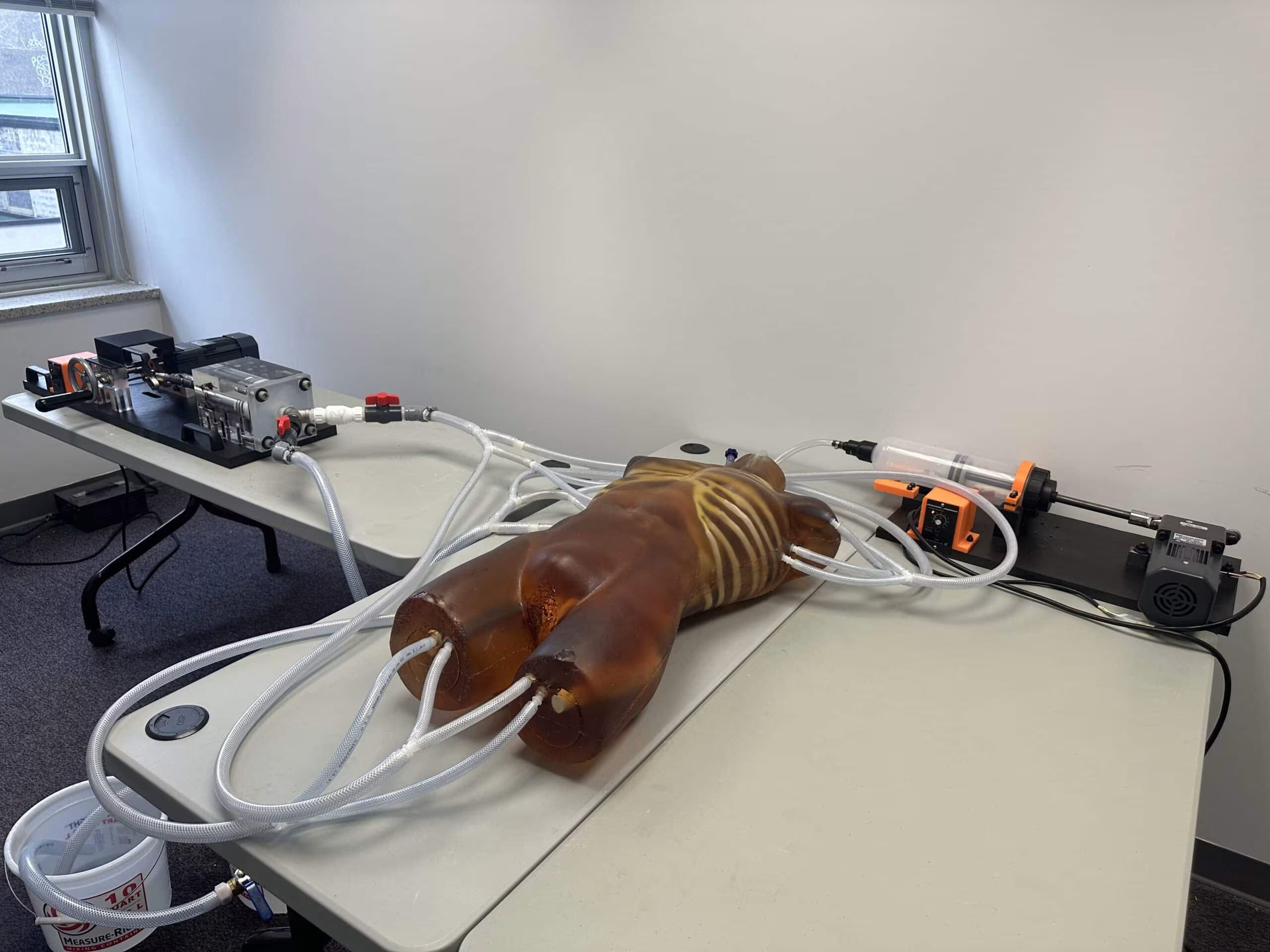

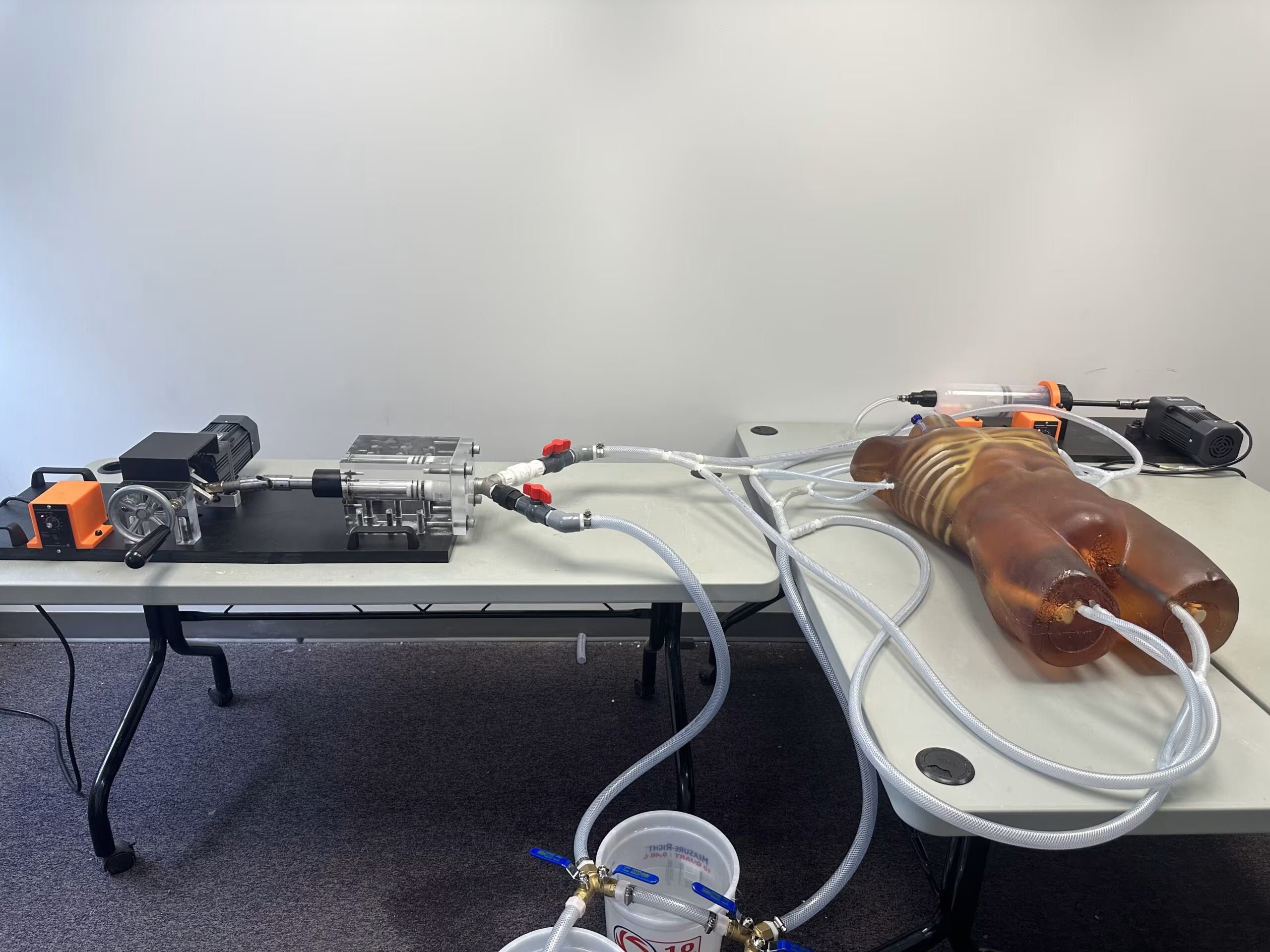

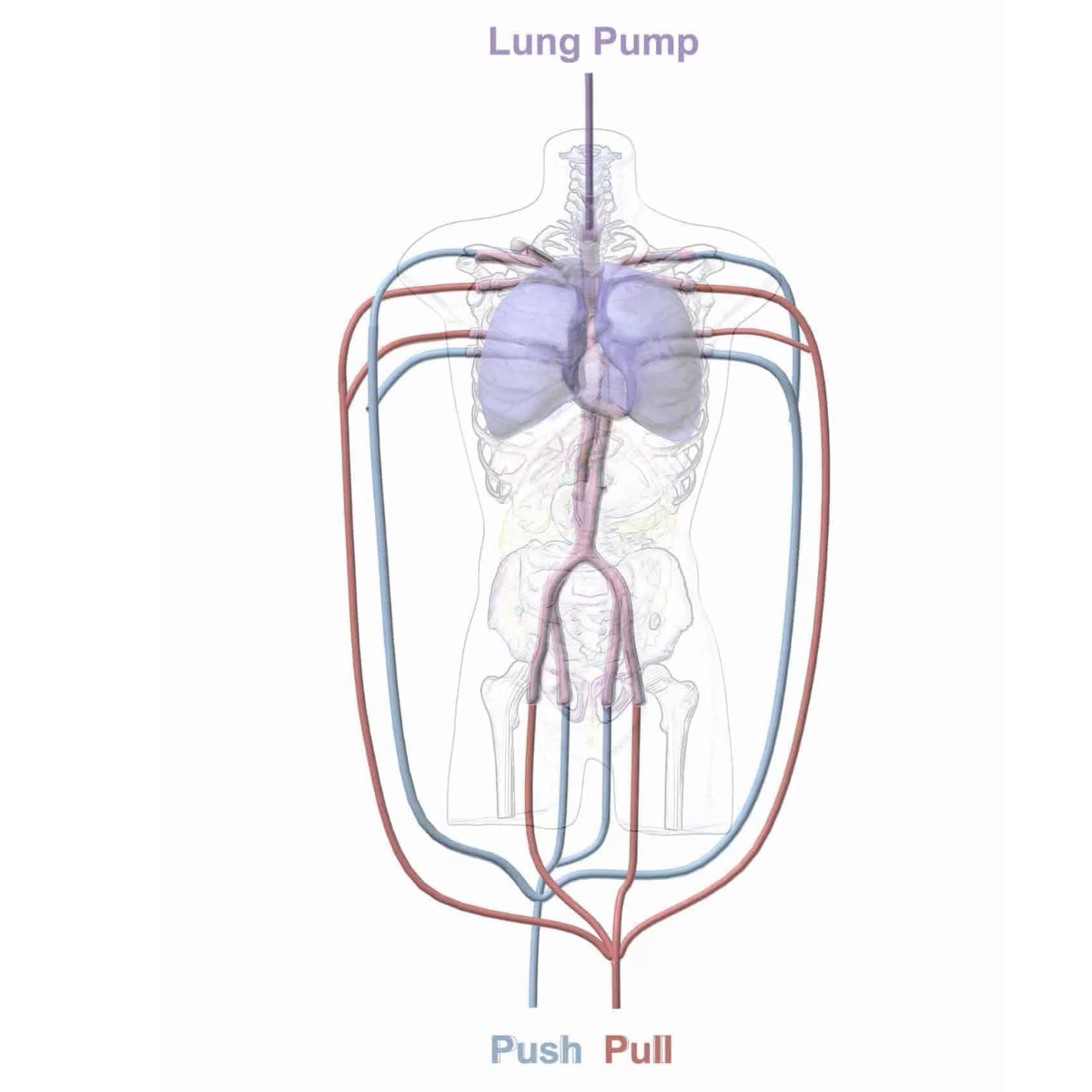

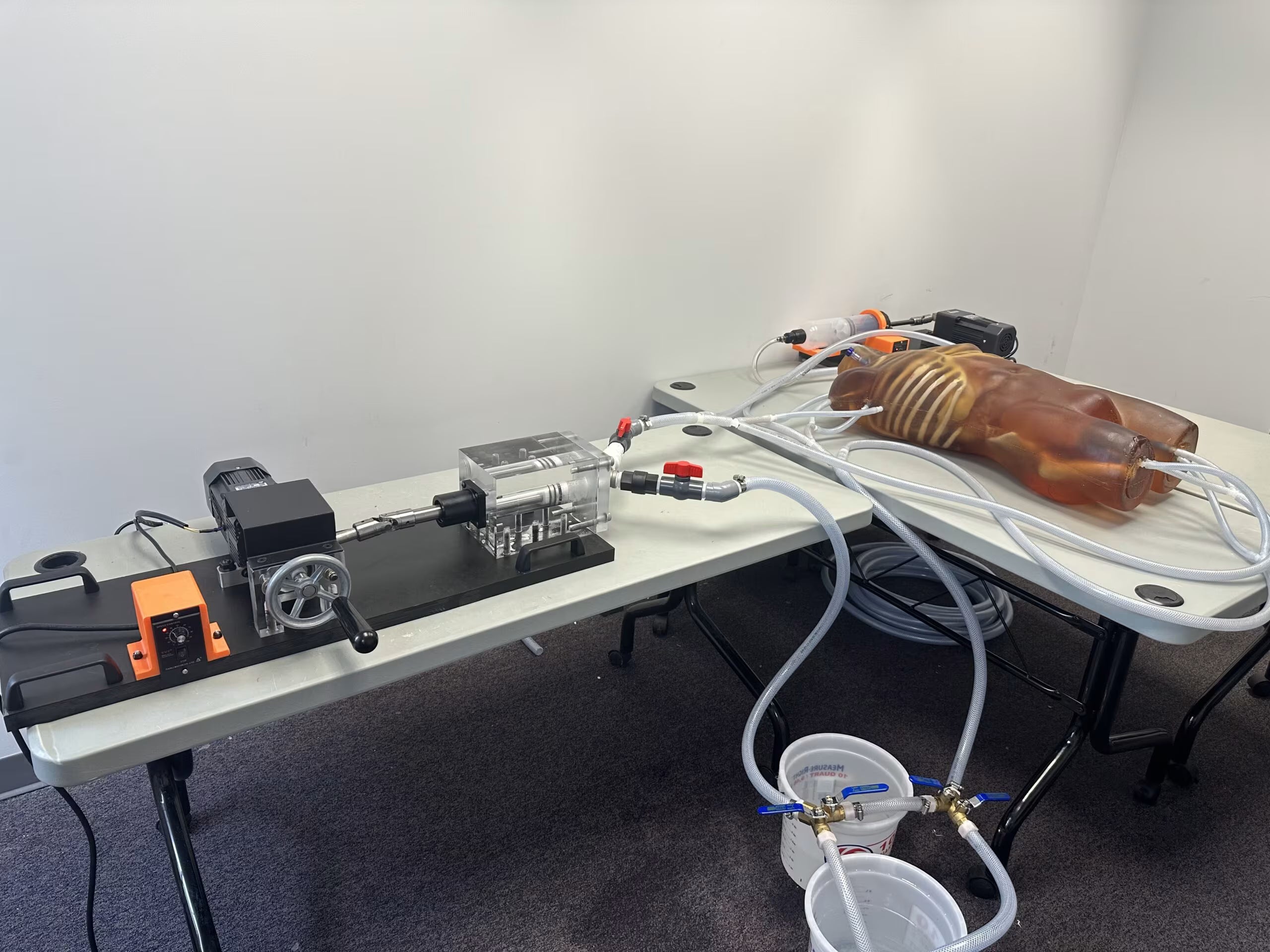

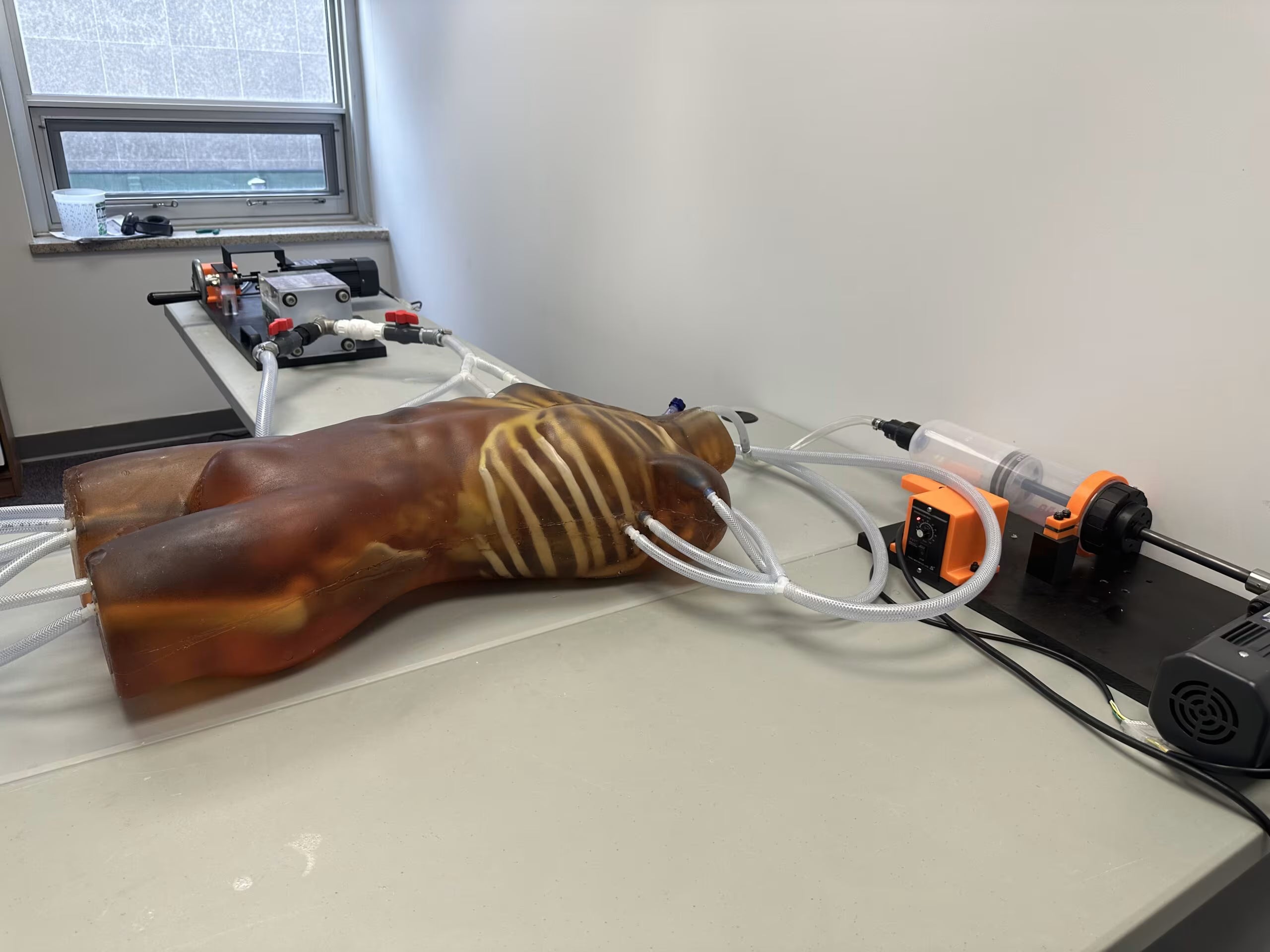

Engineered with dynamic functionality, the phantom includes a realistic heart with a TPS heart pump and breathable lungs with a TPS lung pump. This enables lifelike heartbeat and respiratory motion during imaging. All organs are made from urethane-based tissue-mimicking materials, while bones are fabricated from patented ceramic-reinforced epoxy-based composite material.
Compatible with Barium-sulfate, Iodine-based, Gadolinium-based, Microbubble, and Iron Oxide-based contrast agents.
In terms of MRI applications, the phantom tissues have realistic T2 relaxation time values, making it ideal for T2-weighted MRI methods. Proton-density imaging also yields very good results. T1-weighted imaging is possible, though T1 values are less realistic (~100 ms).
Anatomical Features
- Complete Spine
- Complete Ribcage
- Shoulders & Clavicles
- Pelvis & Partial Femoral Bones
- Trachea

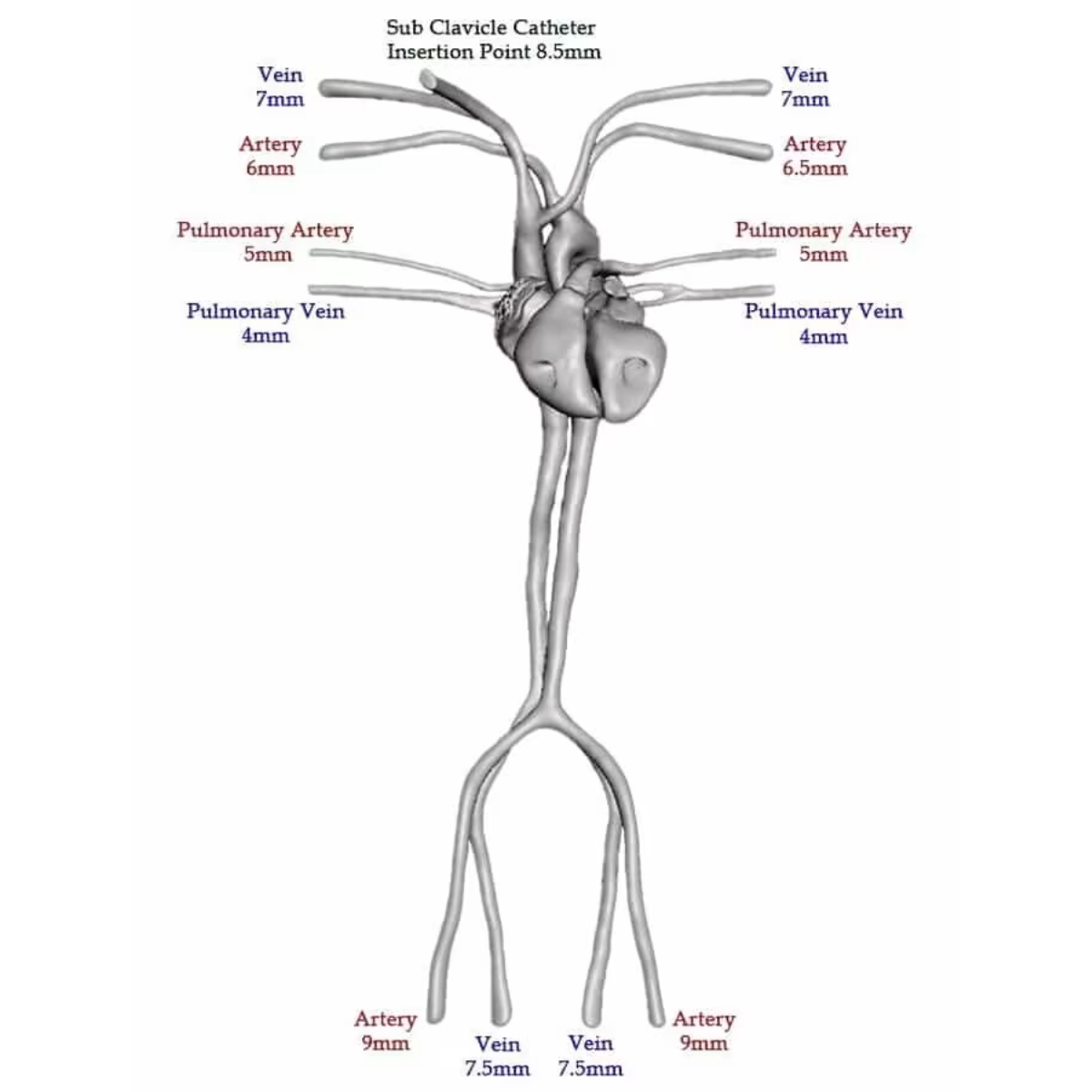

- Realistic Beating Heart with:
- Right Ventricle with Moderator Band
- Left Ventricle with Papillary Muscles
- Appendage Feature
- Aorta, SVC, IVC
- Jugular vessels
- Pulmonic & Pulmonary Veins attached to LA
- Flexible Valvular Structures
- Heart Volume: Right 60 ml, Left 63 ml
- Inflatable Breathing Lungs
- Diaphragm
- Liver with Ligaments & Bile Ducts
- Gallbladder
- Stomach
- Kidneys
- Spleen
- Pancreas
- Large & Small Intestines
- Bladder
- Prostate
- Soft tissue and organs made from urethane-based soft resin
- Synthetic bones made from patented ceramic-reinforced epoxy-based composite material
Included
- Adult Torso (Dynamic) Phantom

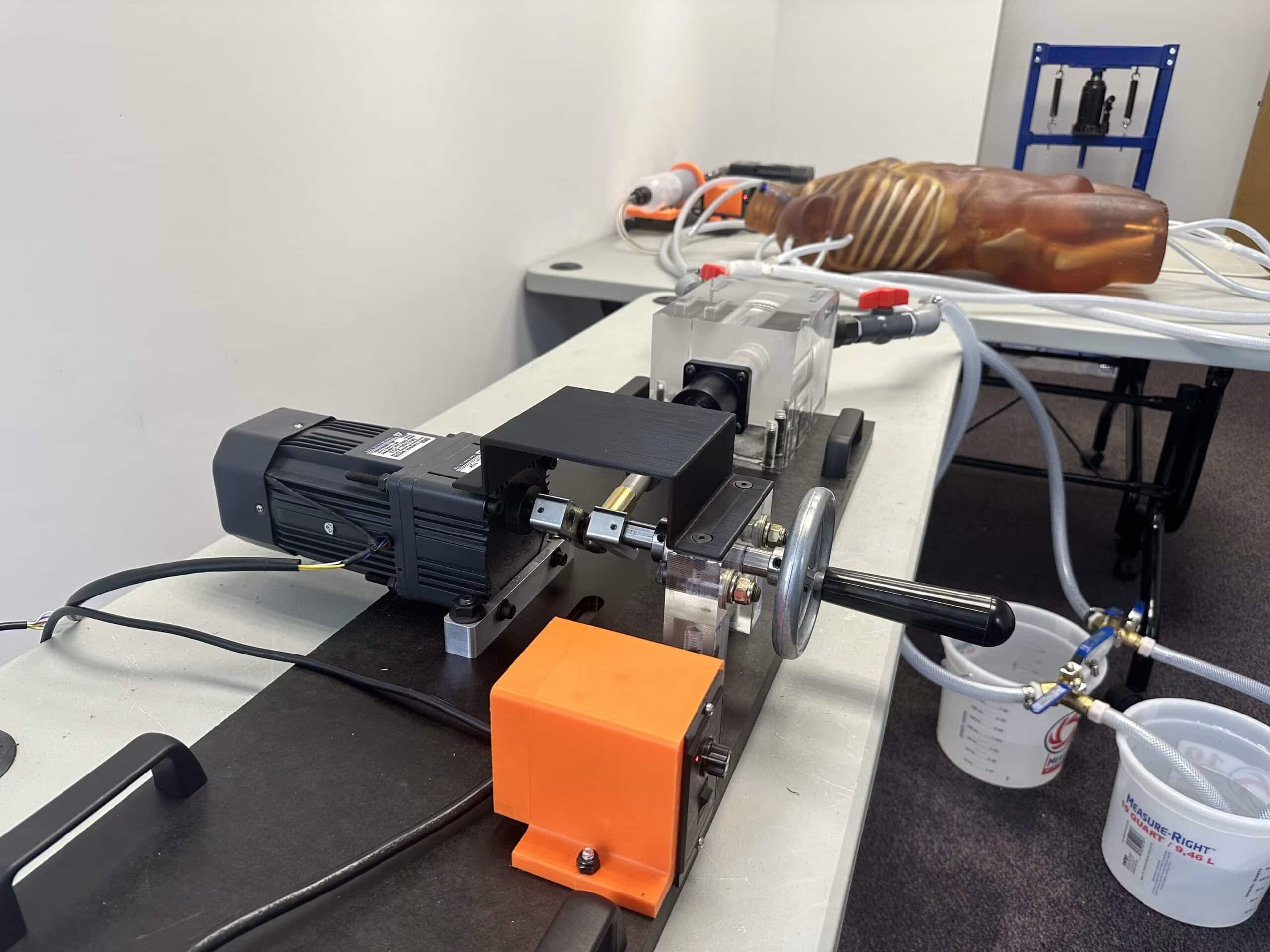

- TPS Heart Pump
- TPS Lung Pump
- User Manual / Assembly Instructions
- Hard Carry Case

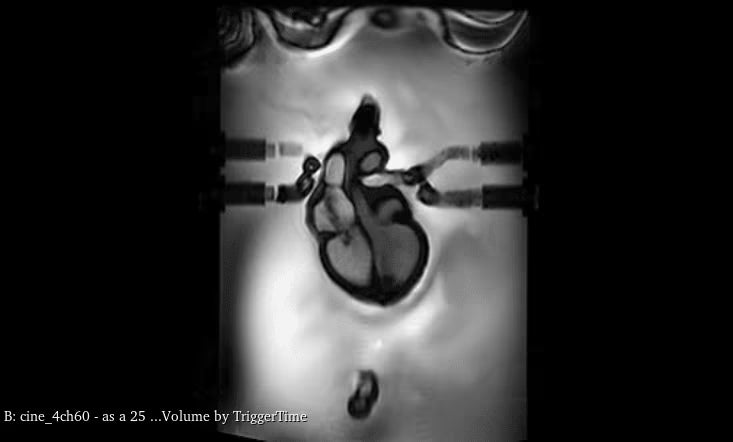

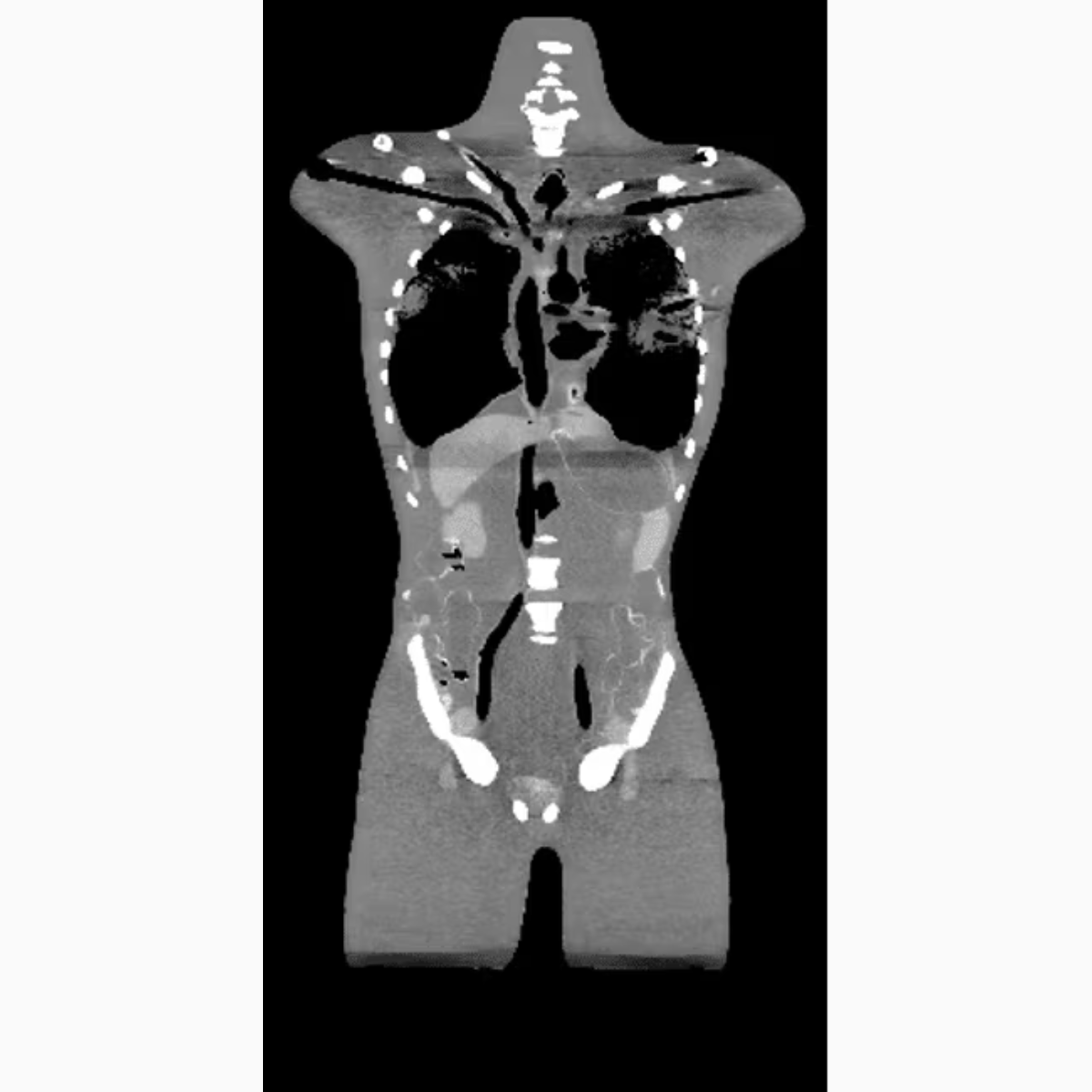

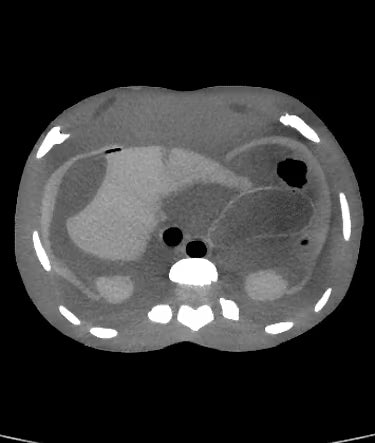

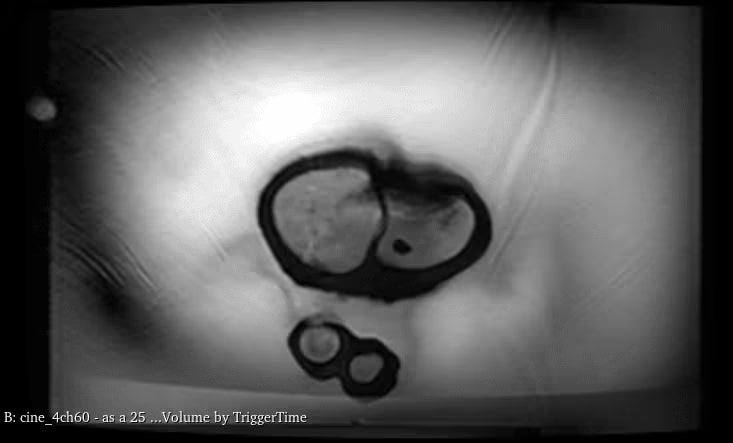

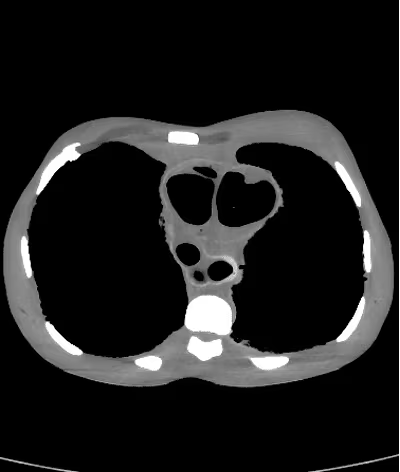

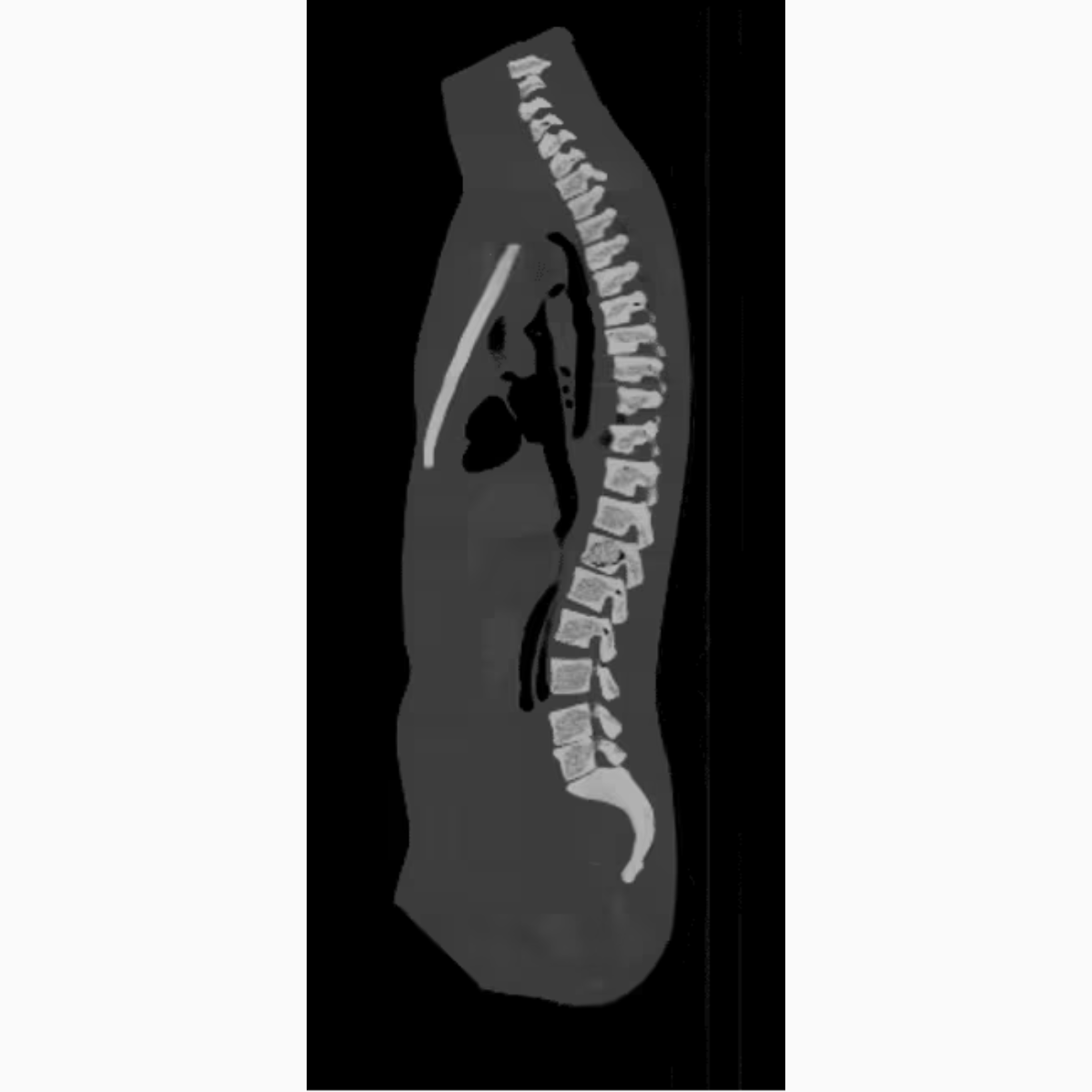

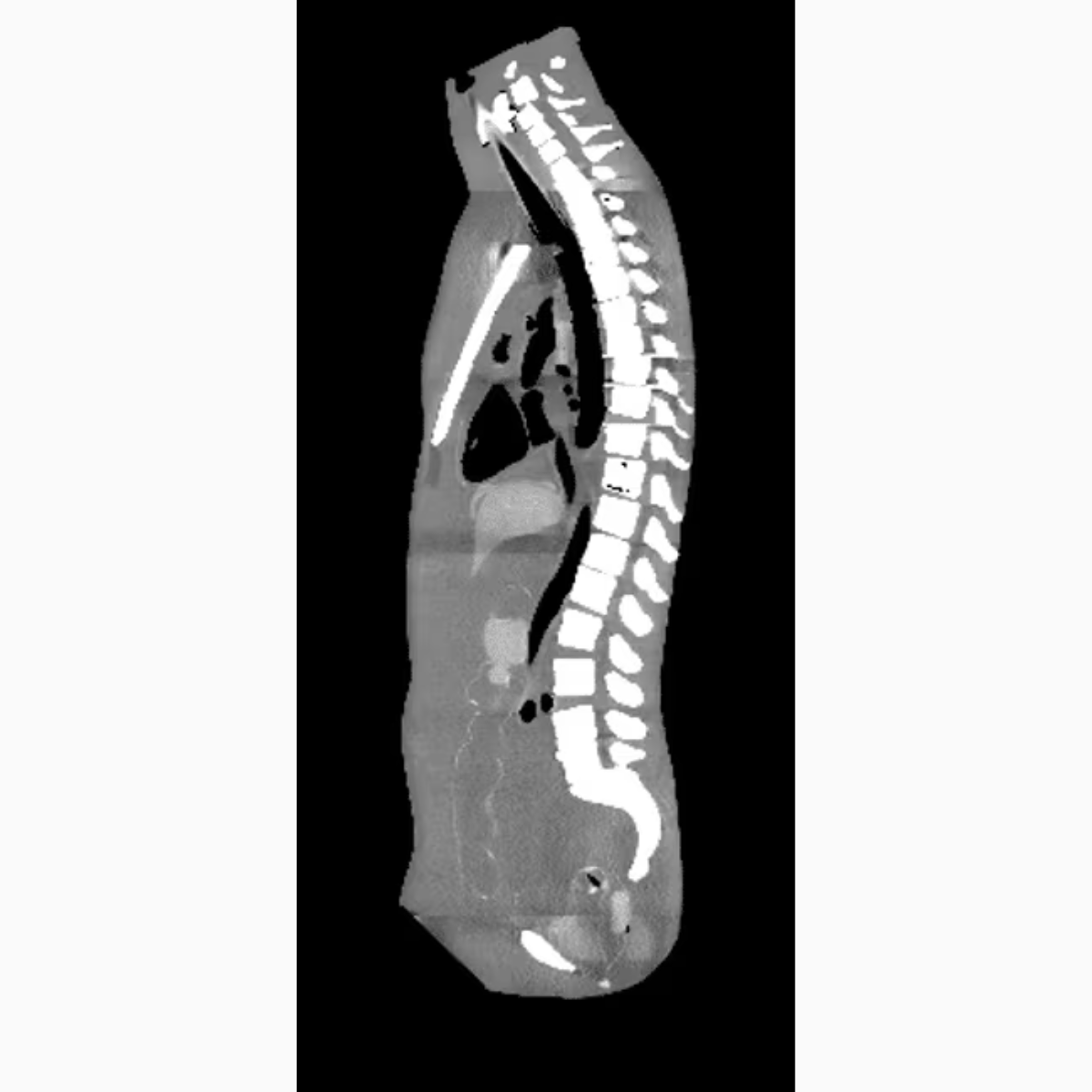

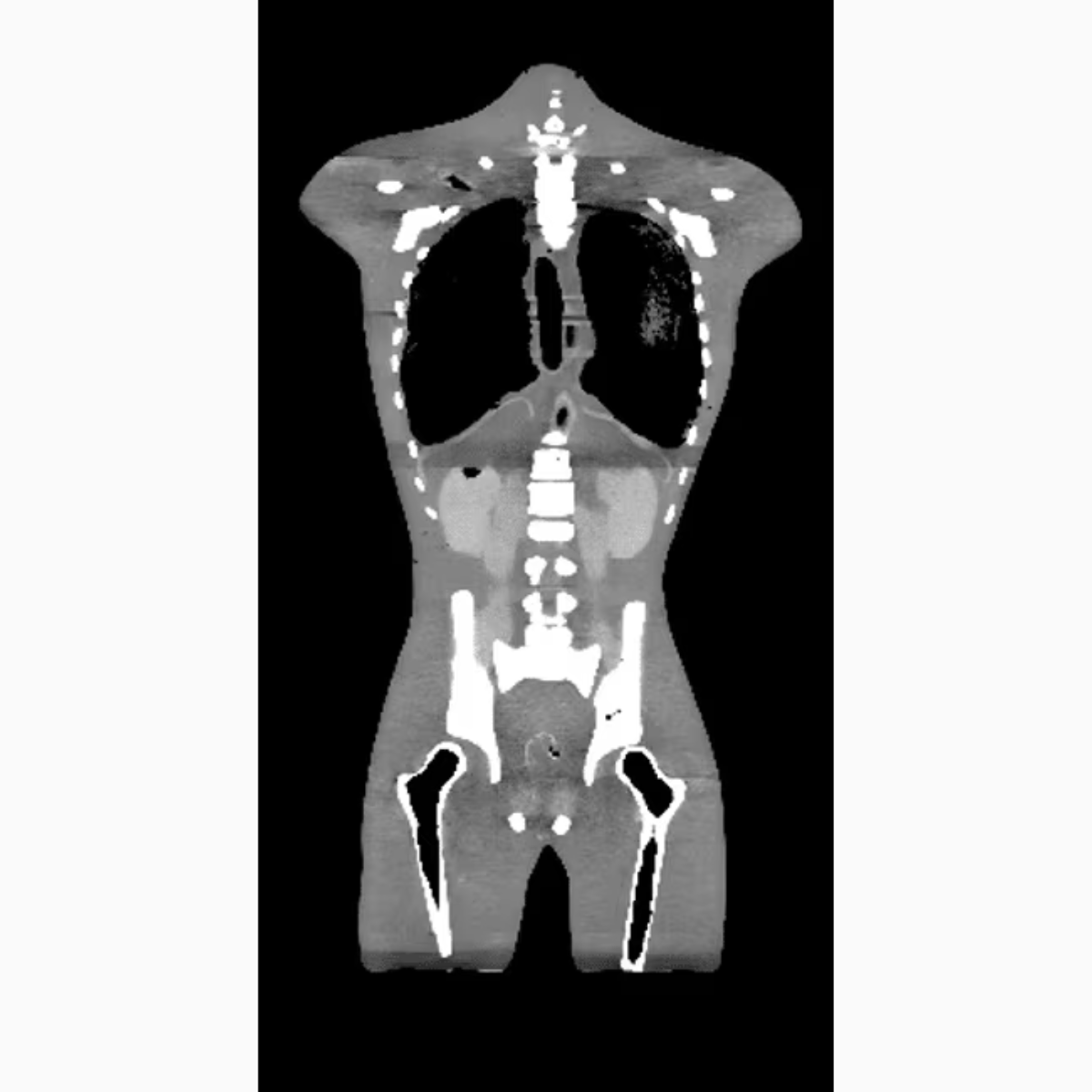

Note: CT scans were obtained from a customized Ultrasound & X-Ray CT Torso using a CANON Aquilion TSX-305A scanner. MRI scans were obtained from the heart phantom placed in a water tank.
